| 材料: | PC (ポリカーボネート樹脂,プラスチックで最高の材料) | 寸法: | 280mm*380mm*155mm |
|---|---|---|---|
| IP 保護率: | IP65防水 | 色: | エレクトリック グレー |
| ハイライト: | 63A distro box,power distro,wall mounted distribution board |
||
| Attribute | Value |
|---|---|

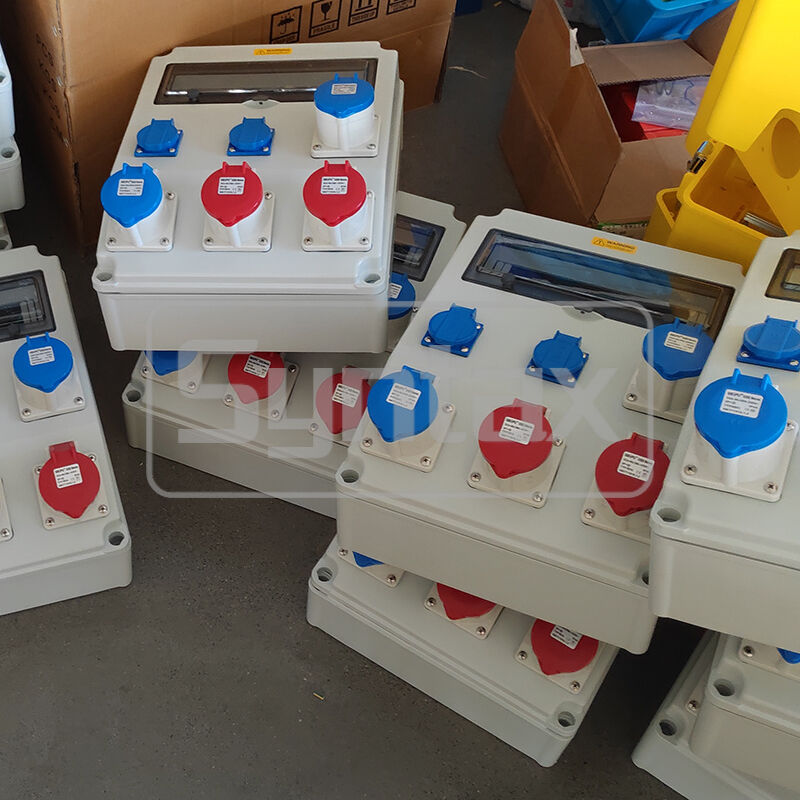

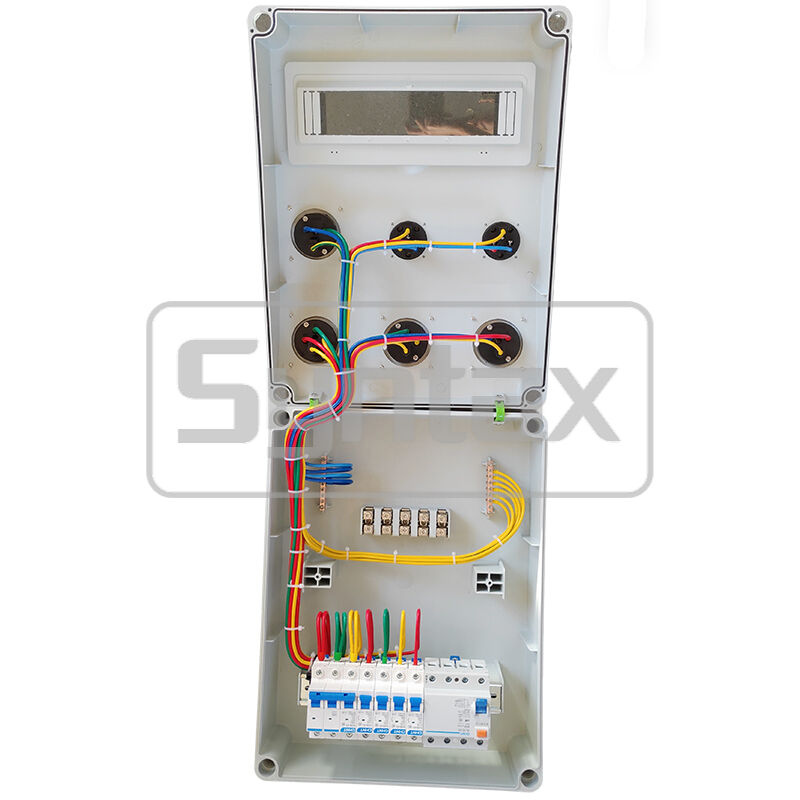

| Box Model | CX3 Wall Mounted Distribution Box IP65 |
| Color | Electric Grey |
| Dimensions | 280 × 380 × 155 mm |

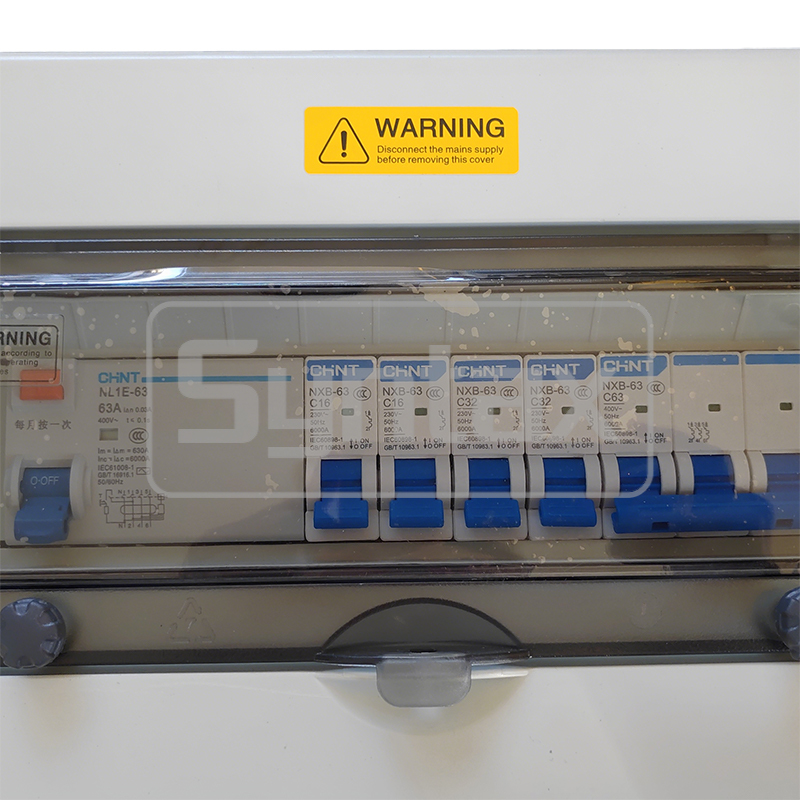

| Incoming Main Switch | Direct connect through cable gland at top/bottom, protected by 1 × 4P 63A 30mA RCD |

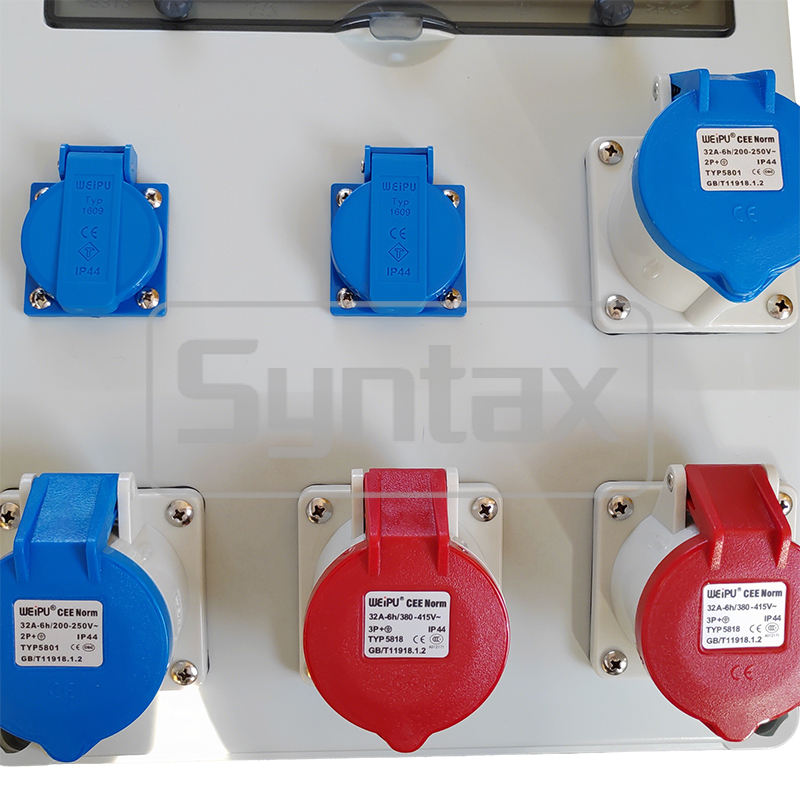

| Outgoing 1 Breaker | 2 × 4P 32A 400V IP44 Panel Mounted Sockets, protected by 1 × 3P 63A MCB |
| Outgoing 2 Breaker | 2 × 3P 32A 220V IP44 Panel Mounted Sockets, protected by 2 × 1P 32A MCBs |
| Outgoing 3 Breaker | 2 × 2P+E 16A 220V IP44 Panel Mounted Sockets, protected by 2 × 1P 16A MCBs |
| Brands | Distribution Box by Syntax; Industrial Plugs & Sockets by Weipu; Breakers by CHINT |
