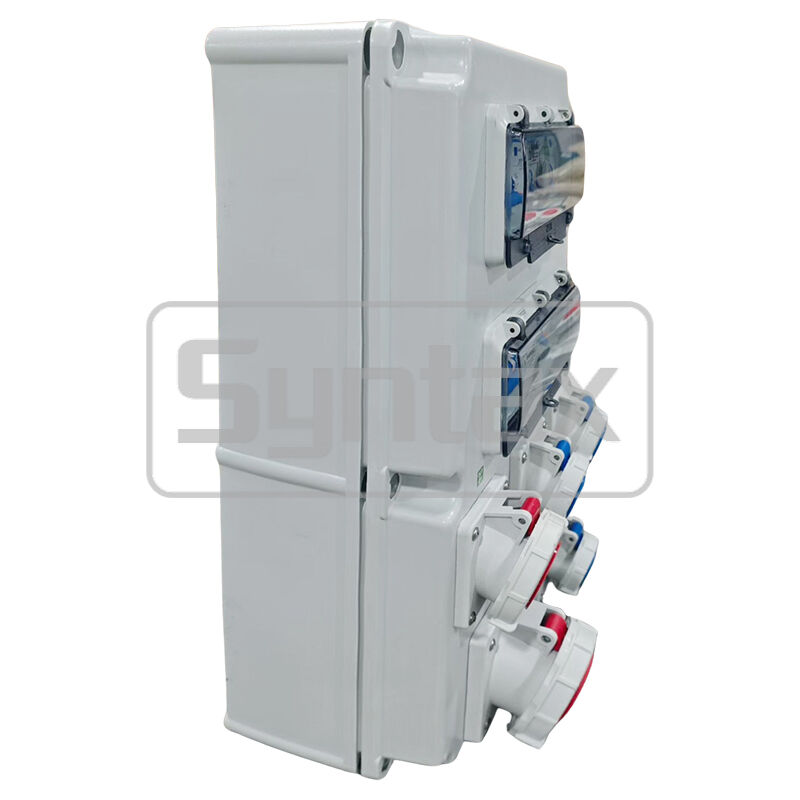

Syntax JS5 Wall-Mounted & Portable Industrial Power Distribution Box 63AMP 3 Phase IP65 Waterproof with RCBO Protected 360*540*180mm

Dimension Drawing of Empty Box:

The Syntax JS Series Industrial Power Distribution Box is a premium, high-reliability solution engineered for wall-mounted permanent installations or highly versatile mobile operations (with an optional top handle). Designed and manufactured in strict compliance with EN 60309 and IEC 60529 standards, this heavy-duty unit is ideal for harsh manufacturing plants, construction sites, workshops, and temporary power grids.

Finished in a professional Electric Grey, the compact 360 x 540 x 180 mm enclosure features a completely cable-free input design. Instead, the bottom is pre-drilled and equipped with two M40 cable glands, allowing installers to feed incoming cables directly into the internal heavy-duty terminals. Power is smartly distributed through high-performance PowerSyntax IP44 angled sockets ranging from 16A single-phase to 63A three-phase lines. For unparalleled electrical safety, every single outlet is independently protected by a dedicated CHINT RCBO (30mA) device, shielding operators from both overloads and residual leakage currents.

Key Features:

• Dual-Utility Installation Concept: Optimally balanced for permanent surface wall-mounting, yet perfectly ready for mobile utility work by adding a top-mounted carry handle.

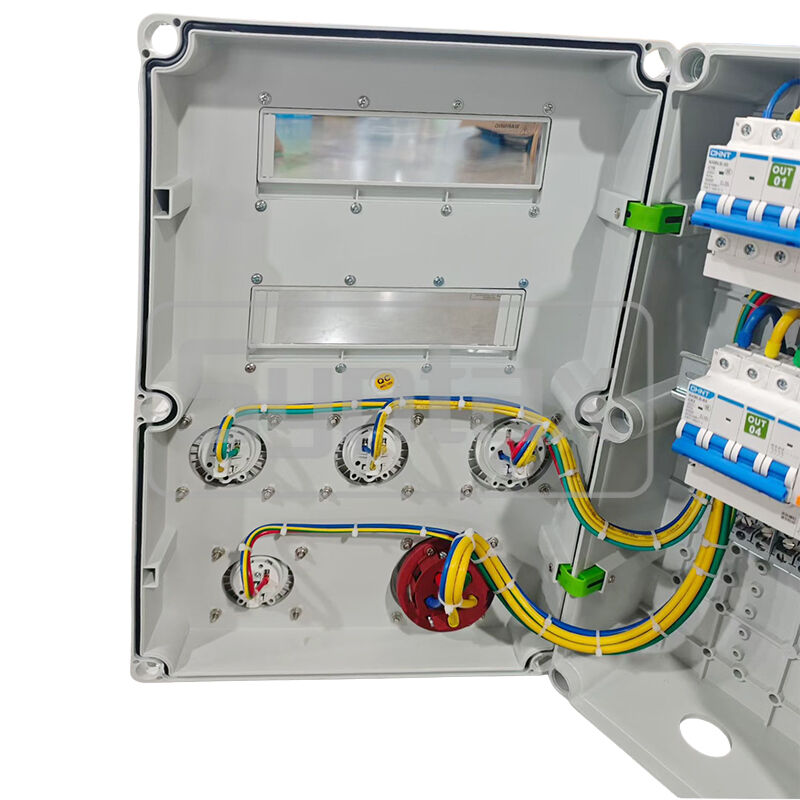

• Installer-Friendly Terminal Block Feed: Features zero external incoming tails. End-users can route their own main power lines directly through the dual M40 bottom cable glands and terminate connections effortlessly onto the integrated internal blocks.

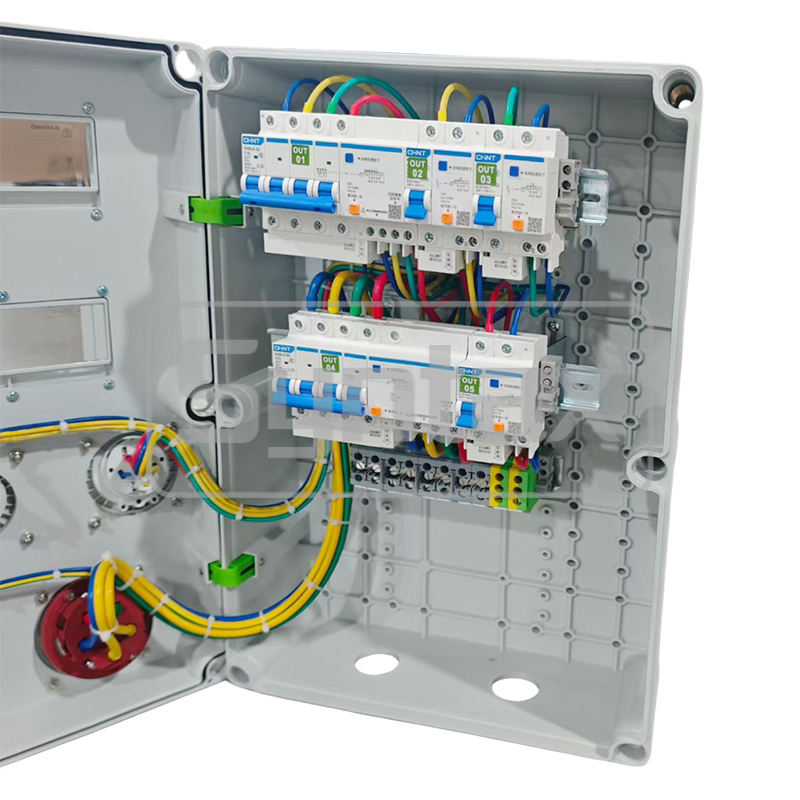

• 100% Independent RCBO Protection: Equipped with top-tier CHINT circuit breakers. Unlike shared-breaker boxes, each of the 5 outlets has its own independent 30mA RCBO, ensuring that a single fault on one line never compromises the remaining outputs.
• Premium PowerSyntax Angled Outlets: Features heavy-duty, spring-loaded PowerSyntax IP44 angled sockets that reduce cable strain and allow smooth downward cable drapery.
• Weatherproof & Shockproof Excellence: Built to withstand severe industrial environments. The enclosure offers an elite IP65 ingress protection rating against heavy water splashes and dust, operating reliably across an extreme temperature spectrum from -20℃ up to +75℃.

Technical Specifications:

• Product Series / Brand: Syntax JS Series
• Enclosure Dimensions: 360mm (W) x 540mm (H) x 180mm (D)
• Enclosure Color & Protection: Electric Grey / Waterproof, Shockproof IP65
• Input Architecture: No incoming cables / 2 x M40 Cable Glands (Bottom entry) with Internal Main Terminal Blocks

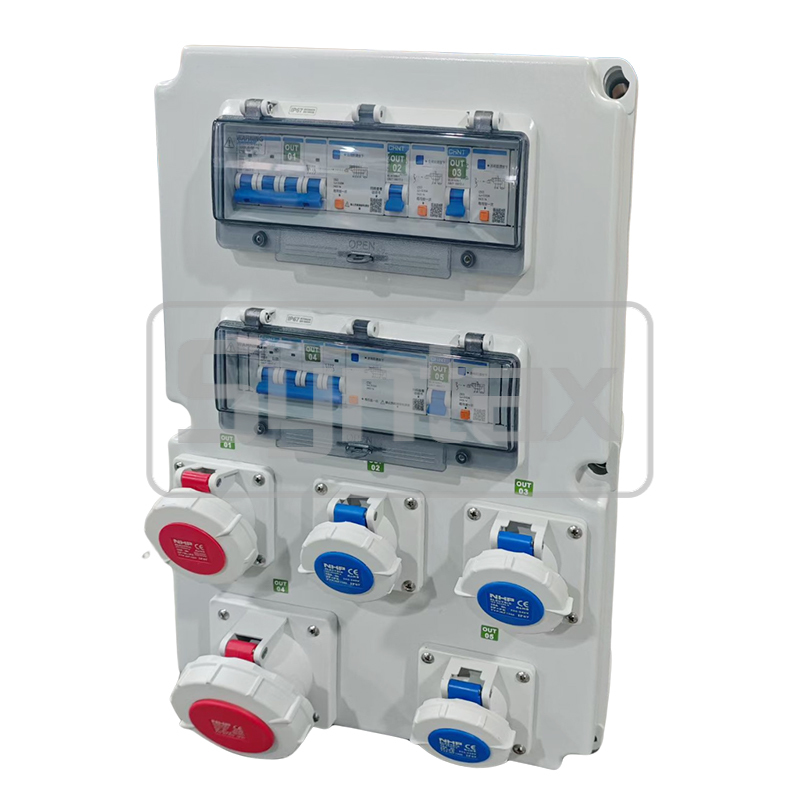

• Output Configuration (PowerSyntax IP44 Angled Sockets):
  • 1 x 63A 5-Pin (3P+N+E) 400V Angled Socket
  • 1 x 32A 5-Pin (3P+N+E) 400V Angled Socket
  • 3 x 16A 3-Pin (2P+E) 220V Angled Sockets
• Circuit Protection (CHINT 30mA RCBO):
  • 1 x 63A/4P RCBO (For 63A 3-Phase Output)
  • 1 x 32A/4P RCBO (For 32A 3-Phase Output)
  • 3 x 16A/1P+N RCBOs (For 3 x 16A 1-Phase Outputs)
• Standards Compliance: EN 60309, IEC 60529
• Operating Temperature Range: -20℃ to +75℃

Target Applications:

• Industrial Manufacturing & Workshops: Fixed wall distribution for heavy machinery, welding bays, and assembly lines.
• Construction & Infrastructure Sites: Centralized distribution boards for scaffolding grids, cranes, and portable power stations.
• Commercial Automotive & Garages: Reliable high-amp power scaling for maintenance bays and EV diagnostic bays.

Customization Services (OEM / ODM):

As a specialist in power distribution networks, Syntax offers extensive customization options on the JS5 platform. We can alter socket arrays (including Schuko, French, UK, or Australian GPOs), integrate digital power monitoring meters, or adjust incoming gland dimensions to suit specific cable profiles. Contact our engineering team today to build a tailored solution for your next project!
